3W 3535 rgb led 3535 RGB SMD LEDs 3535 rgb led

Model NO.
JR-3535RGB12S27-T7A-455
Delivery:
EXW,FOB, CIF ect.
Minimum order quantity:
1000 pieces
Supply Ability:
1000000 pieces / Month
Country of Origin:
China
Stock Time:
3-7 Days
Quantity:

New type 3535 rgb led 3535 SMD led 26mil chip RGB 3W high power led

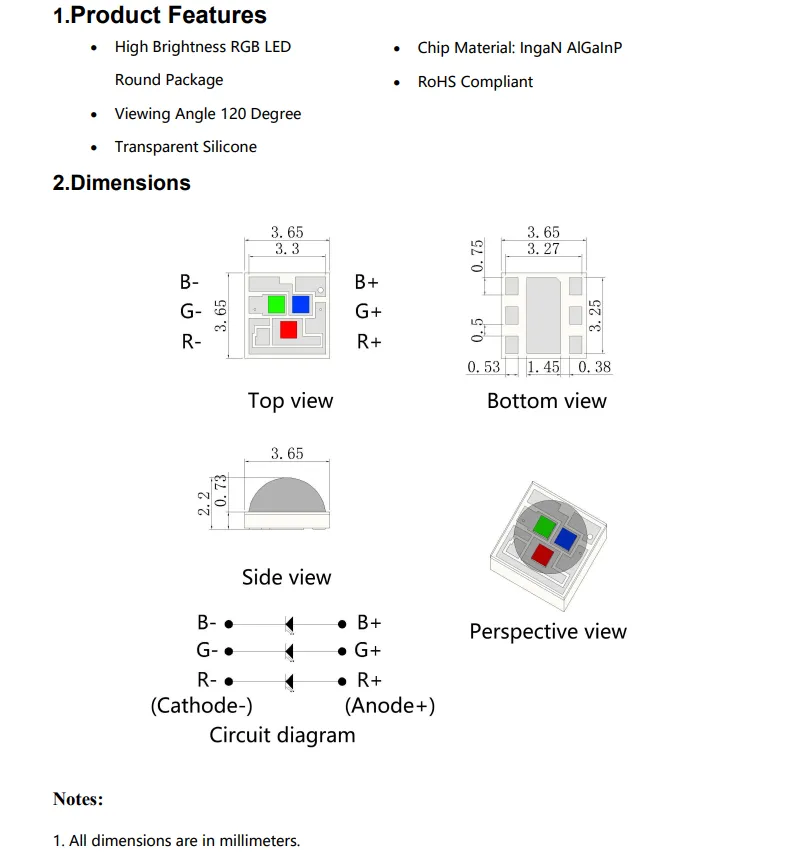

Download datasheet OF 3535 RGB SMD LEDs


3535 rgb led 3535 smd led bulb Quick Details

Input Voltage(V):DC 3V 3535 smd led light Warranty(Year):2-Year Type:SMD LED smd 3535
smd 3535 Lighting solutions service:Lighting and circuitry design, DIALux evo layout, LitePro DLX layout, Agi32 layout, auto CAD layout, Onsite metering, Project Installation
smd 3535 led module Luminous Efficacy(lm/w):80 smd 3535 led module Lifespan (hours):50000  3535 smd led light Working Time (hours):50000 rgb 3535 Chip Material:AlGaInP rgb 3535 Emitting Color:RGB Luminous Intensity:Bright
Luminous Flux(lm):5-40 Optical Attenuation(%):0.1 Power:3w Power Dissipation:3 Viewing Angle(°):120 Color Temperature:RGB
Operating Temperature(℃):-25 - 85 Storage Temperature(℃):-35 - 105 Place of Origin:Guangdong, China Brand Name: JRALED Chip Brand:Sanan

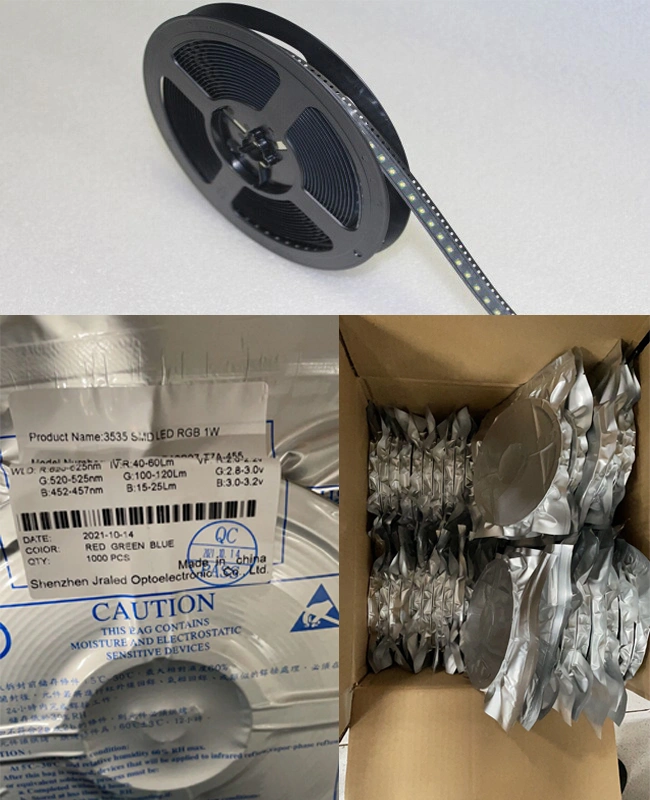

smd 3535 RGB Chip size:20mil Emitting color:rgb smd 3535 RGB Certification:Ce, RoHS 3535 smd led bulb Package Type: 1000pcs/roll
Smd 3535 RGB  Product Description

smd 3535 RGB Product Features

• Well-known chip material, Sanan

• 99.99% gold wire bonding

• Full-color spot, well color consistency

• R, G, B, three-color in one Package

• High flux per LED

• Low-temp & lead-free reflow soldering

• More energy efficient than incandescent and most halogen lamps

• Low Voltage DC operated

• Instant light(less than 100ns)

• No UV




smd 3535 rgb Typical Applications

Product Features

• Well-known chip material, Sanan, EPILEDS

• 99.99% gold wire bonding

• Full-color spot, well color consistency

• R, G, B, three-color in one Package smd 3535 rgb

• High flux per LED

• Low-temp & lead-free reflow soldering

• More energy efficient than incandescent and most halogen lamps

• Low Voltage DC operated

• Instant light(less than 100ns)

• No UV


Products use:
• Portable (flashlight, bicycle)

• Uplighters/Downlighters

• Decorative/Entertainment (stage light)

• Bollards/Security/Garden

• Indoor/Outdoor Commercial and Residential Architectural

• Automotive Ext (Stop-Tail-Turn, CHMSL, Width Lamp)






Static Electricity

• Static electricity or surge voltage damages the High Power LED. It is recommended that a wrist band or an anti-electrostatic glove be used when handing the LEDs.

• A tip soldering iron is requested to be grounded, An ionizer should also be installed where risk of static.

• All devices, equipment and machinery must be properly grounded, It is recommended that measures be taken against surge voltage to the equipment that mounts the High Power LED.


Heat generation

• When the LEDs are illuminating, operating current should be decided after be considering the ambient maximum temperature.

• Please consider the heat generation of the LED when it is designed the PCB.

• The LEDs must be mounted on metal core PCB or heat sink or applied thermal pad.

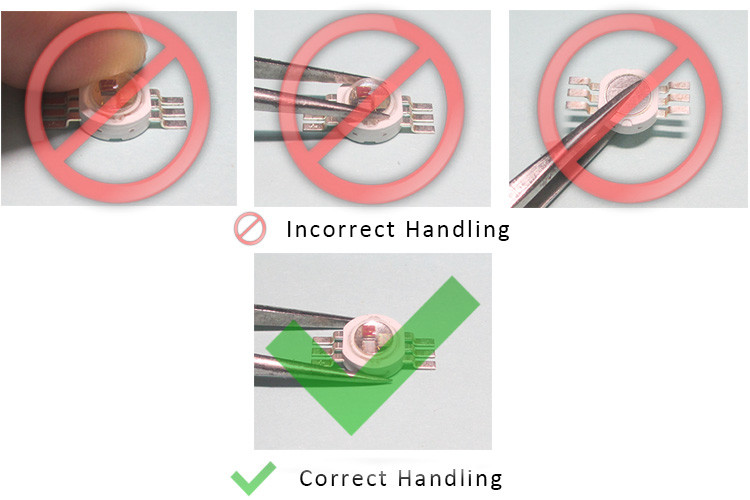

Handing LED

JRALED recommends the following at all times when handing LEDs or assemblies containing the these LEDs:

• When handing the LED with tools like Tweezer or Nipper, do not apply Mechanical Forces directly on LED's Surface.

• Do not touch with hand LED Lens surface directly. It may contaminate the Lens surface and affect on optical characteristics.

• LED should be handled from side because LED's molding material may be damaged with scratching on surface, piercing molding material and broking wire.

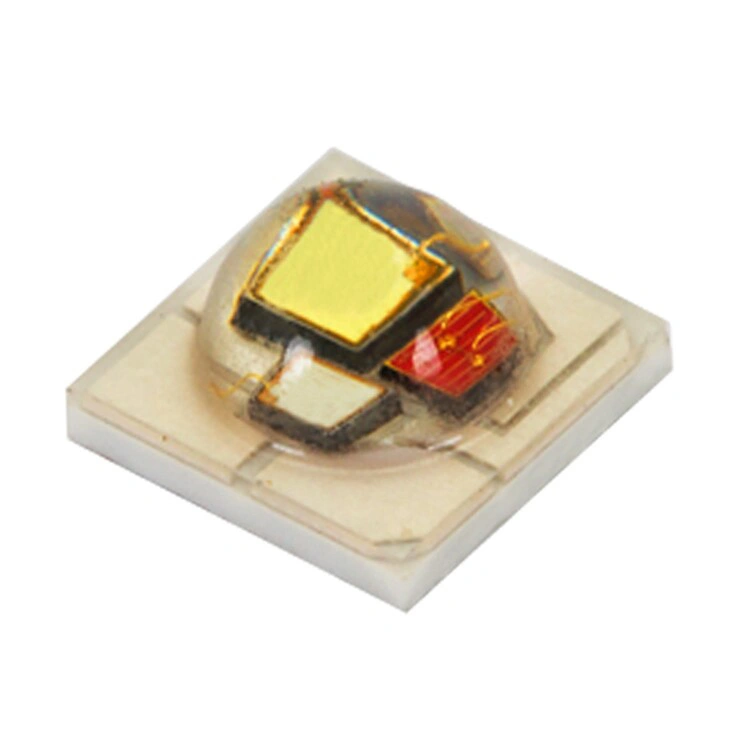

(The picture below just for reference)

new type 3535 smd led 26mil chip rgb 3w high power led

Attention: Electric Static Discharge (ESD) Protection

new type 3535 smd led 26mil chip rgb 3w high power led

The symbol shown above herein to introduce"Electro-Optical-Characteristics". ESD protection for AIGaInP and InGaN is based chips is still necessary even though they are safe in low static-electic discharge. Material in AIGaInP and InGaN based chips are STATIC SENSITIVE devices. ESD protection has to considered and taken in the initial design stage. If manual work is needed, please ensure the device is well protective from ESD during all the process.

Typical Applications • Portable (flashlight, bicycle) • Uplighters/Downlighters • Decorative/Entertainment (stage light) • Bollards/Security/Garden • Indoor/Outdoor Commercial and Residential Architectural • Automotive Ext (Stop-Tail-Turn, CHMSL, Width Lamp)

  • Place of Origin:China
  • Brand Name:JRALED
  • Model Number:JR-3535RGB12S27-T7A-455
Typical Applications • Portable (flashlight, bicycle) • Uplighters/Downlighters • Decorative/Entertainment (stage light) • Bollards/Security/Garden • Indoor/Outdoor Commercial and Residential Architectural • Automotive Ext (Stop-Tail-Turn, CHMSL, Width Lamp)
