Cabinet lamp with light controlled human body sensor switch Motion Sensor
Product Overview:

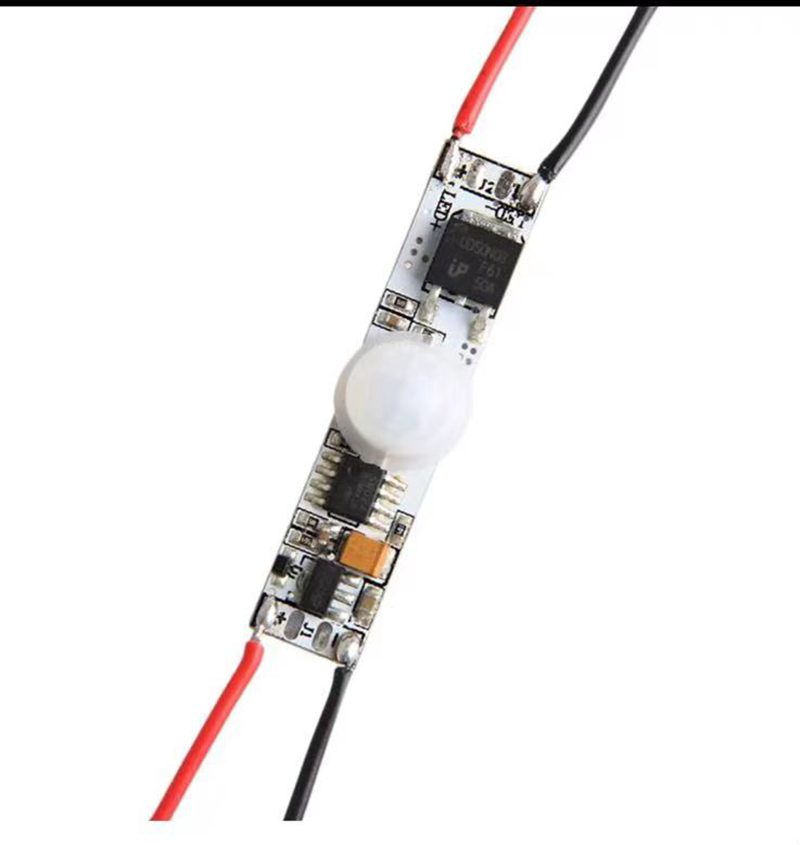

Cabinet lamp with light-controlled human body sensor switch
Product Number: NSB121P
Operating voltage: 5-12VDC
Load capacity: 6A
Product size: L48mm×W10mm
Use: cabinet lamp, cabinet lamp, wine cabinet lamp, bed lamp, and other lamp control
Features:
1. Automatic induction, when people enter the sensing switch detection area, the light will be on, and when people leave, it will automatically delay closing.
2. During the lighting period, each effective human activity will make the induction switch automatically postpone a delay period.
3. During the day, the light is not on, at night, someone light delay for a period of time off.
Instructions:
1. In case of power failure, connect the power supply, human body sensor, and LED lamp according to wiring diagram.
2. Power on the device, and enter the standby mode after the human sensor heats up for about 10 seconds.
Technical parameters:
1. Working voltage: 5-12VDC
2. Load capacity: 6A, within 5A is recommended;
3. Induction distance: 3-5 meters;
4. Induction Angle: 60°;
5. Delay time: about 45 seconds;
6. Light sensing control: all-weather sensing/light sensing (15-25lux) optional;

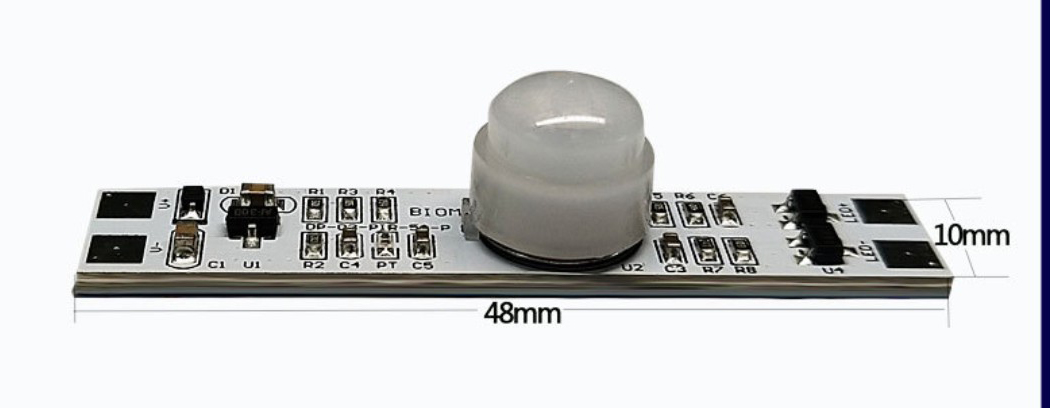

7. Product size: L48mm×W10mm;
8. Wiring mode: V+, V-,LED+,LED-;
